Micro Solutions / Life Science

Capillary Genetic Analyzer Honor 1816

16 capillaries and 8-color detection for multiplex DNA analysis

Product overview

Honor 1816
Superbio
China
Honor
Honor 1816

16 capillaries and 8-color detection for multiplex DNA analysis

Sanger sequencing and fragment analysis in one platform

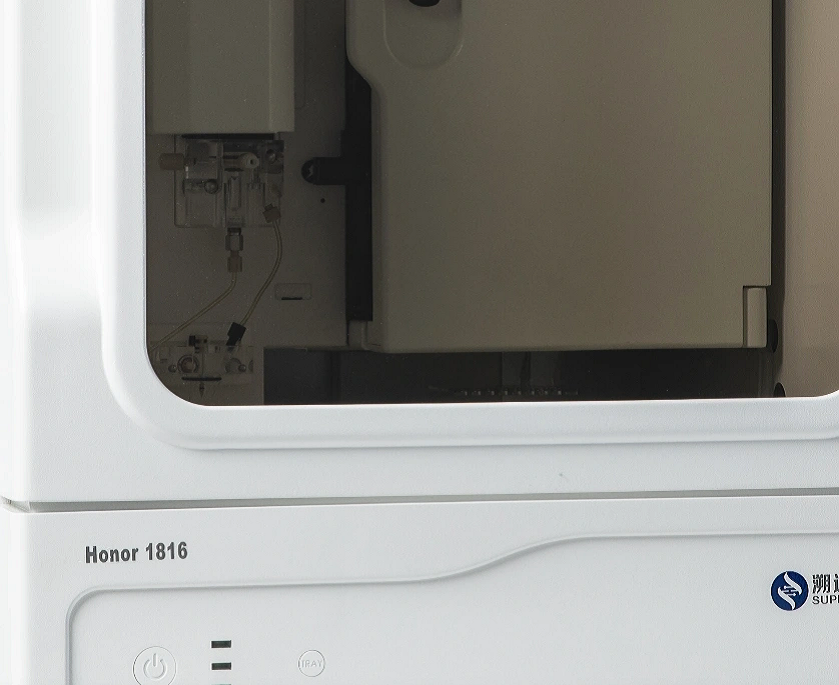

Honor 1816 is a 16-capillary Superbio genetic analyzer with 8-color fluorescence detection for multiplex analysis. Combines Sanger sequencing and fragment analysis in one laboratory platform.

The system separates the tagged DNA fragments in an array of 16 capillaries, records fluorescence with a CCD detector, and transmits the data to sequencing and genotyping software modules. Eight-color optics expands the number of simultaneously distinguishable labels in multiplex panels, allowing the device to be used for STR typing, confirmation. variants and applied molecular genetic research.

16 capillaries, 8-color fluorescent detection; semiconductor solid-state laser with a capacity of 30 mW, registration by the CCD detector in the range of 530-700 nm The declared analysis length is 800 p.p., resolution is 1 p.p., size determination accuracy is less than 0.12 p.p.; with a fragment length of up to 500 p.p., the performance of more than 16 samples / h is declared. Thermostat accuracy is ΔT < 0.2 °C. Dimensions are 812×610×532 mm, weight is 92 kg; power supply is 220 V, 50 Hz.

Key figures

16

capillaries

8

color-detection

800 p.m.

test-length

Applications

Sanger sequencing
Fragmented analysis
STR-typing
Confirmation of NGS finds

Models and configurations

Honor 1816

Product details

Honor 1816

16 capillaries, 8-color detection

Optics and detection

Eight-color fluorescent detection extends the number of distinguishable labels in multiplex panels
Semiconductor solid-state laser with a capacity of 30 mW
Laser-induced fluorescence detection by CCD detector in the range of 530–700 nm

precision

Resolution of 1 p.b. with an accuracy of determining the size of the fragment less than 0.12 p.b.
Accuracy of temperature maintenance ΔT < 0.2 °C
Performance of more than 16 samples / h at a fragment length of up to 500 p.

Application

Sanger sequencing and fragment analysis
STR-type and NGS-finding confirmation

capillary

Number of capillaries	16
Color detection	8 colors
laser	semiconductor solid-state, 30 mW
Detector	CCD, range 530-700 nm

Characteristics of analysis

Permission	1 p.c.
Claimed length of analysis	800 p.m.
Accuracy of size determination	less than 0.12 p.m.
Performance (fragments up to 500 p.p.)	more than 16 samples/h
Accuracy of temperature maintenance	ΔT < 0,2 °C

Dimensions and power supply

Dimensions	812×610×532 mm
Weight	92 kg
Power supply	220 V, 50 Hz

Honor Expendables

Capillary array, 36 or 50 cm

Replacement unit for capillary electrophoresis

Polymer 04/Polymer 07

Separation medium for capillary electrophoresis
