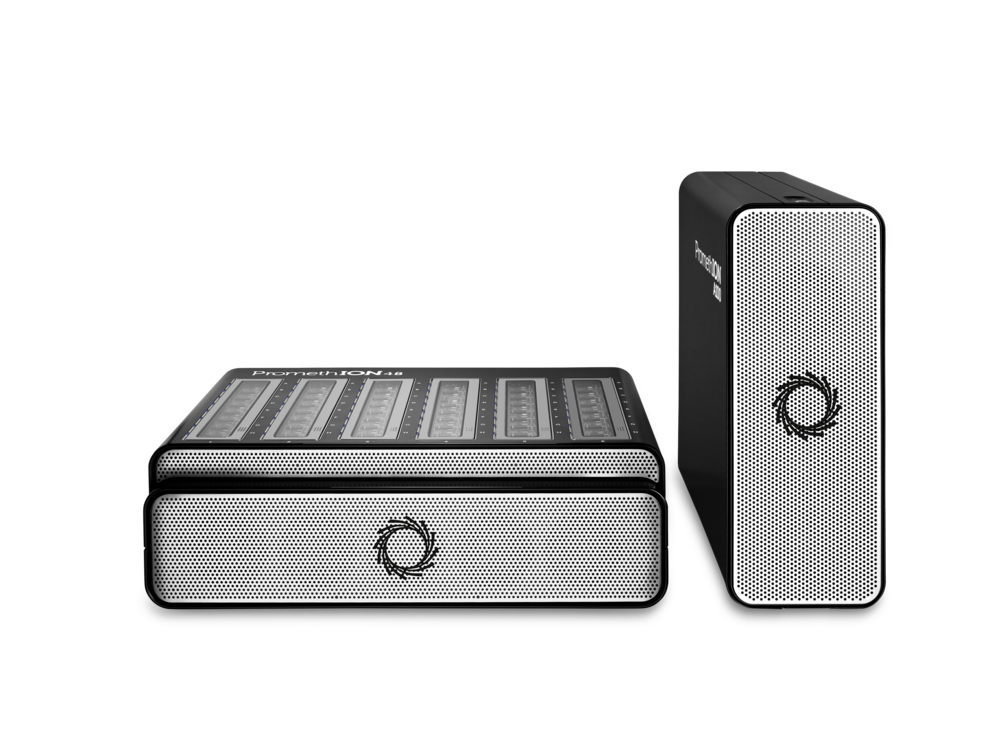

Promethion 48 nanopore sequencer
Maximum parallelism of PromethION: up to 48 independent cells for service laboratories
Product overview
- PromethION 48
- Oxford Nanopore Technologies
- Great Britain
- MinION / GridION / PromethION
- PromethION 48
Maximum parallelism of PromethION: up to 48 independent cells for service laboratories
Separate Sequencing Unit and Data Acquisition Unit for continuous operation
PromethION 48 is the maximum family parallelism for sequencing centers and genomic production programs.
The platform allows for independent management of up to 48 high-performance cells and bascolling on an integrated computational circuit, suitable for population sequencing, large genomes and service laboratories.
Up to 48 PromethION Flow Cells; current chemistry delivers up to 200GB per cell. A-Series includes separate Sequencing Unit and Data Acquisition Unit, supports simultaneous and time-spread launches; the exact configuration of the GPU, storage and power is fixed in the delivery specification.
Key figures
100-200 GB
cell-out
4 GPU
data-collection
512GB
RAM
Applications
- Large genome sequencing
- Population sequencing
- Metagenomics
- Sequencing centers and production programs
Models and configurations
- PromethION 48
Product details
PromethION 48
Maximum parallelism of the Promethion family
A-Series
Sequencing Unit and Data Acquisition Unit
Maximum scale
- Up to 48 independently operated Promethion Flow Cells
- Separate Sequencing Unit and Data Acquisition Unit support simultaneous and time-spread launches
- Targeted at sequencing centers and genomic production programs
Calculations
- 4 NVIDIA Ampere-series GPUs and 1 NVIDIA Turing-series GPUs in the data collection unit
- 512GB RAM and 60TB SSD (56TB available)
- Two 10 Gbps ports (optics or Ethernet)
Infrastructure
- The devices are placed no more than 2 m apart, with a gap of at least 30 cm on the sides.
- Connecting blocks via PCIe (3 cables) and USB-A/USB-B/Mini USB
- The monitor connects via Mini DisplayPort or VGA, keyboard and mouse via USB
Sequencing
| Flow cells | 48 Promethion Flow Cells |
|---|---|
| Typical exit | 100–200 GB per cell |
Sequencing Unit (Sequencing Unit)
| Weight | 31 kg |
|---|---|
| Size (WxVxG) | 590×190×430 mm |
| Maximum power | 1 210 W |
| Power supply | 100–240 V AC (50/60 Hz) |
Data Acquisition Unit (Data Acquisition Unit)
| Weight | 26 kg |
|---|---|
| Size (WxVxG) | 178×440×470 mm |
| GPU | 4× NVIDIA Ampere-series + 1× NVIDIA Turing-series |
| RAM | 512GB |
| Storage | 60 TB SSD (56 TB available) |
| Maximum power | 2,640 W |
| Power supply | 200–240 V AC (50/60 Hz) |
| Network | 2×10 Gbps (optics or Ethernet) |
S and conditions of operation
| OS | Ubuntu Focal 20.04 / Ubuntu Noble 24.04 |
|---|---|
| Operating temperature | +18…+22 °C |
| Storage | Do not expose the temperature outside the range of +5 ... +40 °C |
Flow cells
PromethION Flow Cell
Cell to run sequencing on PromethION 48
