5G WiFi Digital Microscope Classroom
Microscopic digital class system with 5G WiFi wireless communication

Wireless 5G Wi-Fi class for microscopy: up to 120 student stations without cable laying

broadcasting of images of the teacher and students, annotations, control of the presence

Lanoptik’s wireless digital microscopic classroom combines the images of the teacher and students into a single interactive learning environment without laying a local cable network.

The system connects the teaching station, student microscopes, cameras, computers and mobile devices through its own 5G Wi-Fi network. The teacher can broadcast images and educational materials, observe screens and microscopic images of students, compare samples, make annotations, collect tasks and conduct electronic electronic work. There are six configuration options for student places: binocular and trinocular microscopes, with a computer, monitor or autonomous smart camera.

The system architecture supports up to 120 student stations; a separate interactive workstation MW1200/MW2000 is designed to connect up to 60 terminals and cover up to 15 m in a room with a radius of up to 300 m2. Data transmission – 5G Wi-Fi IEEE 802.11ac, encoding H.264, WPA/WPA2 protection. MW1200: 12 MP, 4000×3000, up to 30 fps; MW2000: 20 MP, 5184×3888, up to 15 fps at 3840×2160. C-mount and proprietary adapters for Olympus, Nikon, Leica and Zeiss microscopes are available; Pixit WiFi EDU software runs on Windows, mobile clients - Android and iOS. The specific composition and number of stations are determined by the project of the laboratory.

Key figures

120

training stations (max.)

60

terminals on MW1200/MW2000

15 m m

Wi-Fi coverage

5G Wi-Fi

IEEE 802.11ac

Applications

Microscopy training laboratories
Histology, anatomy, embryology, pathology
Earth Sciences and Mineralogy
Materials and metallography
Forensic examination

Models and configurations

MW1200
MW2000

Product details

Class of Digital Microscopy

5G Wi-Fi wireless network without cable laying

Teaching station

Trinocular microscope with interactive workstation

Interactive workstation MW1200/MW2000

up to 60 terminals, radius up to 15 m

Network architecture

The system builds its own 5G Wi-Fi network, without requiring cable laying, except power supply.
System architecture supports up to 120 student stations
The MW1200/MW2000 workstation connects up to 60 terminals and covers a radius of 15 m indoors of up to 300 m2.
H.264 encoding, WPA/WPA2 transmission protection

Teaching functions (Pixit WiFi EDU)

Broadcasting the screen of the teacher or selected student on all devices, displaying Word/Excel/PPT materials
Monitoring screens and microscopic images of all students in real time
Comparison mode up to four images of students, annotation tools and whiteboard
Message exchange, assignments, electronic presence mark

Options for student places

Six configurations (Plan A–F) for binocular and trinocular microscopes Olympus, Nikon, Leica, Zeiss
A standalone smart camera with a built-in 15.6-inch Full HD display (Plan A, D) does not require a separate computer
Options with a smart camera and external monitor (Plan B, E) or Wi-Fi camera and PC (Plan C, F)
Each student station additionally supports the connection of 1-2 smartphones or microplates

Interactive workstation

Camera resolution	12 MP (4000×3000) 20 MP (5184×3888)
Matrix	Sony IMX412 CMOS, 1/2,3" Sony IMX147 CMOS, 1/2,3"
Frequency of personnel	30 fps (60 fps HDMI) 15 fps at 3840×2160
Maximum terminals	60
Optical interface	C-mount (without lens) or dovetail mount (lens 0.43x)
Data interfaces	RJ45 × 2 (PC, Internet), HDMI (except for the version 20 MP)
Wi-Fi coverage radius	15 m (room up to 300 m2)
Wi-Fi frequency range	5.180–5.825 GHz
Signal speed	2600 Mbps
Network protection	WPA/WPA2, WPA-PSK/WPA-PSK2
Power supply	DC 12 B, 5 A
Weight	2.1 kg
Dimensions	180 × 142 × 115 mm

Software

Teacher's PRO	Pixit WiFi EDU (Windows)
Requirements for the PC teacher	Windows 10 64-bit, CPU i7 8th generation and higher, 16 GB of RAM and more, 512 GB drive and more, discrete graphics card
Mobile applications	Android, iOS
Photo formats	JPG, BMP, PNG, TIFF
Video format	MP4

Configuration of student places (Plan A-F)

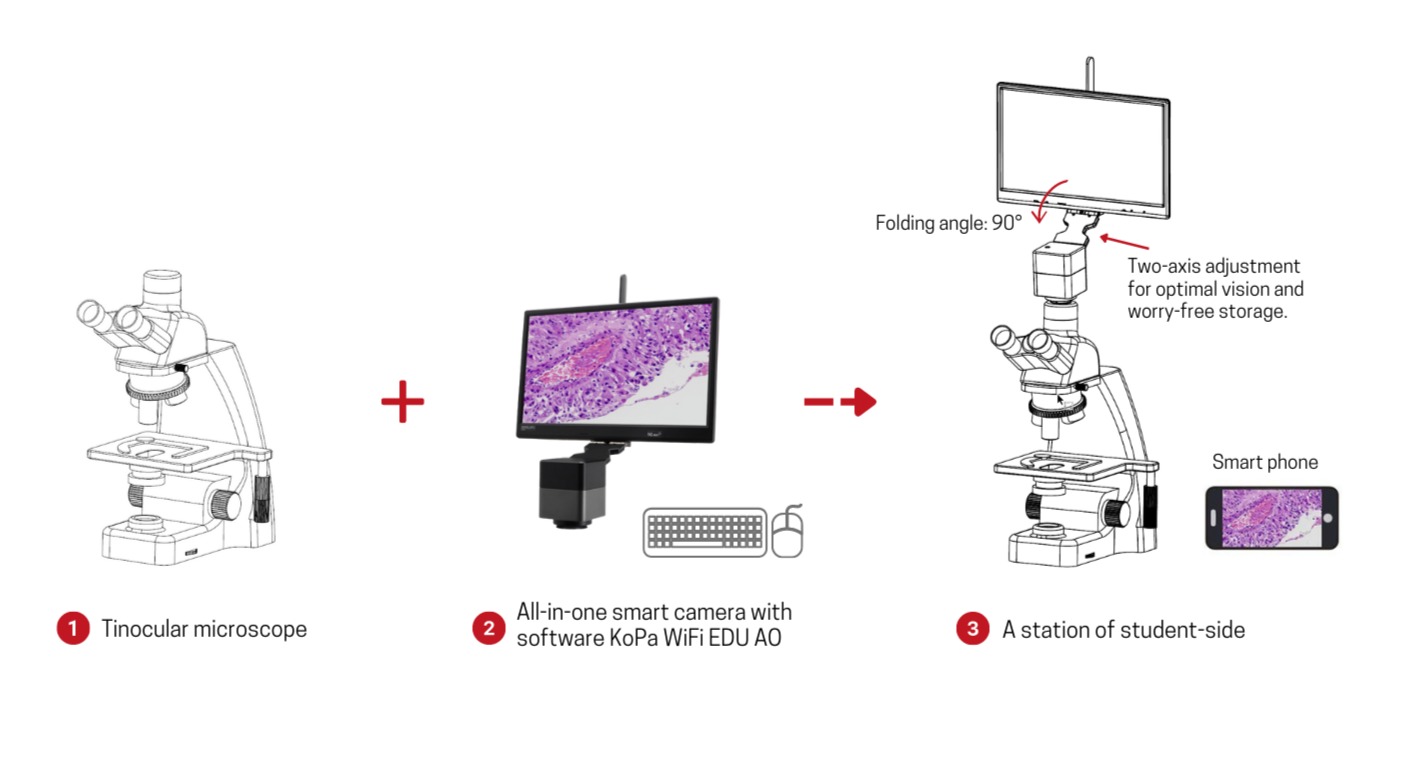

Plan A/D – Autonomous Smart Camera

Built-in 15.6 Full HD display, no separate PC and monitor, for binocular (A) and trinocular (D) microscopes

Plan B/E – Smart camera with HDMI monitor

Separate monitor, built-in OS and camera software

Plan C/F – Wi-Fi camera with PC

Requires a Windows computer and monitor

Cameras and adapters

The HE/TE/CA/JX/HW/HD series

Camera models for a specific plan and microscope brand (Olympus, Nikon, Leica, Zeiss)

Branded C-mount and dovetail adapters

Fixing cameras to microscopes of different manufacturers
