up to 18 x 1 l
bottle-capacity
Micro Solutions / Life Science
Storage cabinet for acids PCC-720
A molded cabinet without metal inside for long-term storage of acids and corrosive reagents
Product overview
- Molded Acid Corrosive Cabinet
- Jeio Tech
- Republic of Korea
- Safety Cabinets
- Molded Acid Corrosive Cabinet
A molded cabinet without metal inside for long-term storage of acids and corrosive reagents
capacity of up to 18 bottles of 1 liter, connection to the hood or filter module

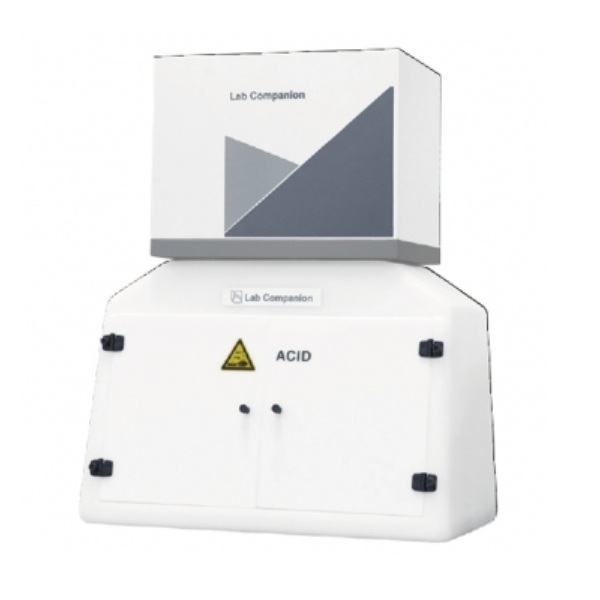

Molded cabinet PCC-720 for storage of acids and corrosive reagents.
The body of chemically resistant polymer has no metal interior surfaces in the storage area; it is possible to connect to a direct or filter hood.
PCC-720: polyethylene housing, door and guides of polypropylene; external dimensions 720 × 472 × 535 mm, opening 560 × 320 mm, hood pipes with an external diameter of 150 mm.
Key figures
PE/PP
hull-door
12.5 kg
mass
Applications
- Storage of acids and aggressive reagents
- Storage of LVH and aggressive reagents by hazard classes
- Compact laboratories with limited space
Models and configurations
- PCC-720
Product details
Acid cabinet PCC-720
metal-free
Options for connecting the hood
direct-filter
Materials
- The body is completely cast from polyethylene (PE), there are no metal surfaces inside - the risk of corrosion is reduced
- Door and guides made of polypropylene (PP) further increase chemical resistance
Storage and ventilation
- It can hold up to 18 bottles of 1 liter.
- Connects to an existing hood via a DN150 or EM-33 filtering module
Storage
| Capacity (bottles of 1 litre) | 18 pcs |
|---|
Materials
| Corps | polyethylene (PE) |
|---|---|
| Door/guide | polypropylene (PP) |
Dimensions
| External dimensions (W×D×H) | 720 x 472 x 535 mm |
|---|---|
| The opening (SHXG) | 560 x 320 mm |
| Extract pipe, national diameter | 150 mm |
| Weight | 12.5 kg |
Connection options
Filtering module board
Basis for installation of filter module
Filtering hood module EM-33
Vapour neutralization without connection to stationary hood, up to 2 filters
Bracket for exhaust sleeve Ø75
Sleeve attachment with local suction
