Micro Solutions / Life Science

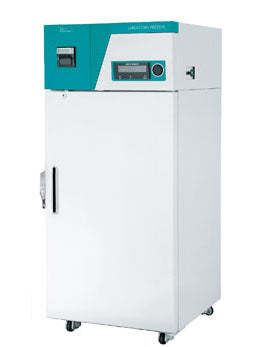

Lab Companion FCG3 Freezers
Storage of samples at -40...-25 °C: volume from 154 to 647 l
Product overview
- FCG
- Jeio Tech
- Republic of Korea
- Lab Companion CLG / FCG
- FCG
Storage of samples at -40...-25 °C: volume from 154 to 647 l
Direct camera cooling and ICH Q1A(R2) compliance for long-term storage
FCG laboratory freezers for long-term low-temperature storage of samples and reagents.
Thermal insulation, sealed camera, alarm and automatic/manual defrosting help to keep the temperature stable and control access.
For the FCG3 series, the range of -40...-25 °C and volumes of 154, 303 and 647 liters are confirmed; the external dimensions depend on the volume; standard shelves can withstand 26-30 kg.
Key figures
154-647 l
volume
ICH Q1A(R2)
stability
Applications
- Long-term storage of samples and reagents
- Pharmaceutical storage according to ICH Q1A(R2)
- Storage of serums and biomaterials at negative temperatures
Models and configurations
- FCG3-150
- FCG3-300
- FCG3-650
Product details
FCG3 laboratory freezer
shelves and digital controller
Control panel
touchscreen
Design
- Direct cooling ensures uniform temperature distribution throughout the chamber
- Stainless steel interior chamber
- Magnetic seal of the door
- Automatic defrosting
Control and security
- Touch screen with key events recording
- Automatic restart after power outage
- Calibration of temperature to minimize deviations
- Temperature over/lowering alarm and door lock
Compliance with requirements
- Control of temperature variations and oscillations: ±5 °C at −20 °C for 12 months (ICH Q1A(R2))
- Optional validation of IQ/OQ/PQ
Temperature and volume
| Temperature range | −40…−25 °C |
|---|---|
| Chamber volume | 154 l 303 l 647 l |
Dimensions and mass
| Internal dimensions (WxGxB) | 550×570×490 mm 550×550×1000 mm 700×675×1370 mm |
|---|---|
| External dimensions (W×D×H) | 763×815×1055 mm 765×760×1650 mm 915×885×2020 mm |
| Weight | 123 kg 155 kg 238 kg |
Shelves.
| Number of shelves (stand./max.) | 2/6 3/11 3/17 |
|---|---|
| Shelf load | 26 kg 26 kg 30 kg |
Power supply
| Consumption (220 V/60 Hz) | 5.0 A 5.5 A 6.5 A |
|---|
Shelves and storage
Retractable shelf
Additional division of camera space, option
Temperature Recorder (Dot/Chart/Thermal Line)
Recording the temperature in the chamber, option
Monitoring
LC GreenBox
Mobile monitoring of the device, option
Voice alert system
Alert up to 7 numbers when temperature deviation, option
