−40…150 °C
range of TH3-KE
Micro Solutions / Life Science

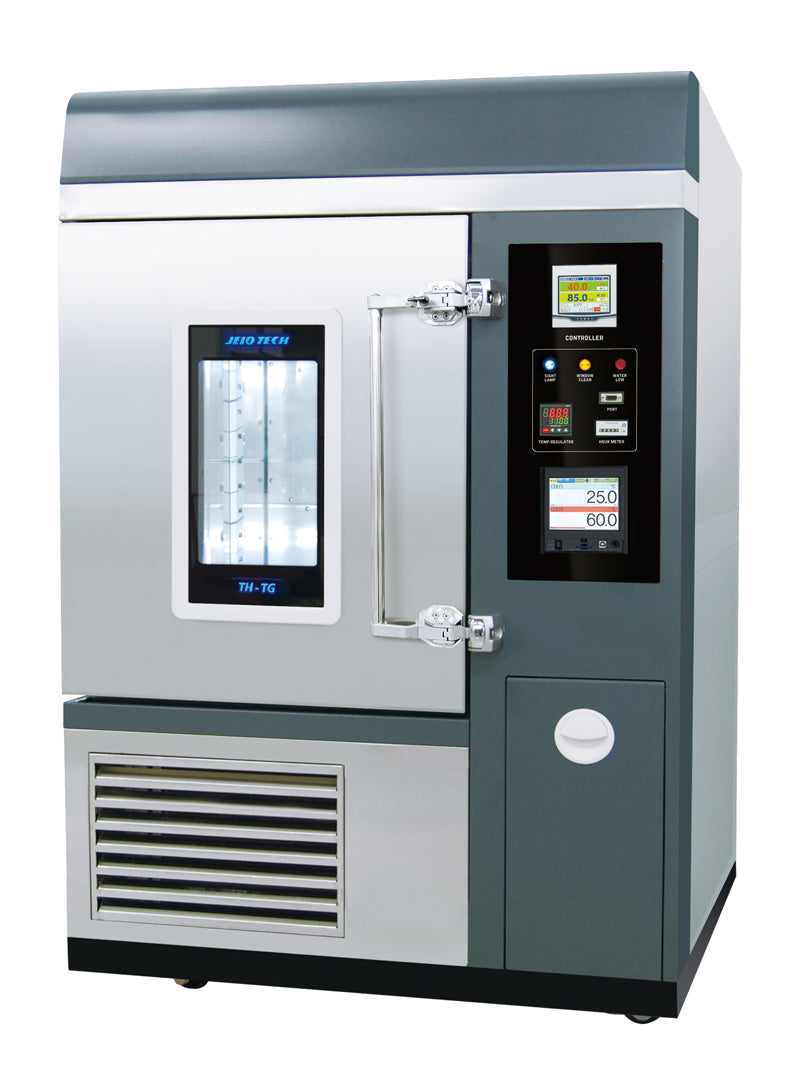

Heat and Humidity Camera Lab Companion TH3
Stability tests: up to 150 °C, humidity up to 95% RH, according to DIN 12880/IEC 60068
Product overview
- Continuous climatic conditions of the Lab Companion
- Jeio Tech
- Republic of Korea
- Lab Companion TH
- Continuous climatic conditions of the Lab Companion
Stability tests: up to 150 °C, humidity up to 95% RH, according to DIN 12880/IEC 60068
TH3-KE, TH3-ME and TH3-PE desktop cameras for pharmaceutical and materials science tests
Lab Companion climate chambers for reproducible testing of materials, pharmaceutical products and biological objects.
Software control forms temperature and humidity profiles; a sealed chamber, external humidification system, calibration and multi-level protection support long-term tests.
The TH3 range covers desktop and floor cameras: depending on the performance, the temperature is from −40 to 150 °C, the humidity is usually 20–95% RH. The exact range and volume are determined by the TH3-E/PE/ME/KE/TG/G series.
Key figures
95 % RH
max. humidity
±0,3 °C
temperature fluctuation
Applications
- Stability tests of medicines
- Climate testing of materials
- Tests for DIN 12880 / IEC 60068
- Controlled conditions for biological objects
Models and configurations
- TH3-KE-100
- TH3-ME-100
- TH3-PE-100
Product details
Heat and Humidity Camera TH3
color-screen
Control panel
Direct Water System (Direct Water System)
Accuracy of control
- Independent regulation of temperature and humidity
- Temperature fluctuation ±0.3 °C, variation ±0.5 °C
- Oscillation of humidity ±1.0% RH, variation ±3.0% RH (at 25 °C/60%)
Design
- Three temperature classes: TH3-KE (−40...150 °C), TH3-ME (−20...150 °C), TH3-PE (0...120 °C)
- Ø50 mm cable port for external sensors
- Electronic overheating protection and overload auto-disconnection
Convenience and monitoring
- Intuitive control with color touch screen
- Optional remote monitoring via LC GreenBox
- Water tank 8-12 liters depending on the volume of the chamber
Temperature
| Range without moisture | −40…150 °C −20…150 °C 0…120 °C |
|---|---|
| Fluctuation | ±0,3 °C |
| Variation | ±0,5 °C |
| Heating time to 100 °C | 60 minutes. 50 minutes 40 minutes |
| Cooling time | 70 minutes 55 minutes 35 minutes |
Humidity
| Range. | 20–95 %RH 20–95 %RH 30–95 %RH |
|---|---|
| Fluctuation | ±1,0 %RH |
| Variation | ±3,0 %RH |
Camera and power supply
| Chamber volume | 100 l. |
|---|---|
| Internal dimensions (WxGxB) | 500×380×530 mm |
| Number of shelves (stand./max.) | 2/10 |
| Max. Shelf load. | 25kg |
| Water tank | 12 l l |
| Consumption (220 V/60 Hz) | 16.5 A 14.4 A 11 A |
Equipment and options
Cable port
Passage of sensor cables through a sealed port Ø50 mm
Additional shelves
Increased useful camera load
Signal lamp.
Indication of the state of operation of the device
Water Purifier / Direct Water System
Preparation and direct water supply for the humidifier
LC GreenBox
Mobile camera monitoring, option
