Micromanipulator Gynemed TrakJector
Motorized micromanipulator for ICSI with one hand control through trackball
Product overview
- TrakJector
- Gynemed
- Germany
- Micromanipulators
- TrakJector
Motorized micromanipulator for ICSI with one hand control through trackball
Positioning accuracy less than 1 μm, motorized or manual oil injector

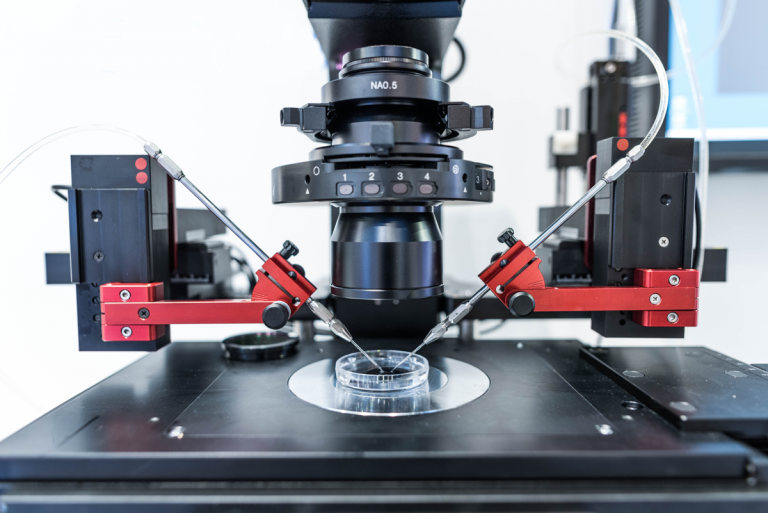

TrakJector is a German motorized micromanipulator for ICSI: smooth precise control with one hand, repeatability of less than 1 μm and rapid pipette replacement.

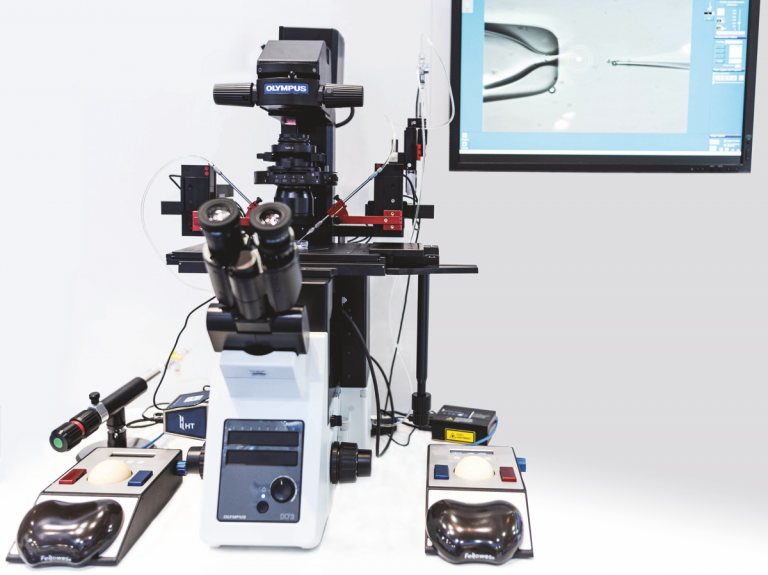

Micromanipulation system for ART laboratories. Two-button AIOtrackball trackball controls motorized movement and injection/retention pressure, allowing one-handed operation. The folding mechanism and HOME function accelerate the replacement of micropipettas with return to the working position. Motorized (MIUmotOil) and manual (MIUmanOil) are available. Oil injectors.
Motorized axis 24 mm, resolution over 100 nm, repeatability less than 1 μm, speed up to 16 mm/s (30 steps). Weight of manipulator units 4.8 kg, power 110/240 V. Compatible with inverted microscopes Leica, Olympus, Nikon and ZEISS.
Key figures
24 mm
motorized
up to 16 mm/s
speed, 30 steps
Applications
- ICSI (intracytoplasmic sperm injection)
- Biopsy of embryos and polar bodies
- Micromanipulations with oocytes and embryos in the laboratory of ART
Models and configurations
- TrakJector with MIUmotOil
- TrakJector with MIUmanOil
Controls
- One-handed control: AIOtrackball trackball with MIUmotOil motorized injector
- The trackball and two buttons control both injection/containment pressure and motorized movement.
- Ergonomic pillow GELpillow reduces the load on the hands during prolonged work
- Adjustable speed for different operators and magnifications
Precision and mechanics
- Positioning accuracy: tolerance less than 1 μm
- Rough tuning across all work areas
- Turning off the Y-axis for strictly parallel stroke during injection
- Two-step adjustment of injection and retention angles by rotary regulator
Working with micropipettas
- Folding mechanism for easy access to micropipettas
- HOME function: quick return of pipettes to their original operating position after replacement
- Oil injector with simple tank refueling and operation without bubbles
Compatibility
- Installed on common inverted microscopes Leica, Olympus, Nikon and ZEISS
- Production in Germany, low maintenance requirements and easy cleaning
Relocation
| Motorized axle stroke | 24 mm |
|---|---|
| Permission | > 100 nm in one direction |
| Repeatability | < 1 μm |
| Speed | up to 16 mm/s, adjustment in 30 steps |
Injectors
| Motorized | MIUmotOil - oil, with accurate dosing of pressure |
|---|---|
| Hand-held | MIUmanOil - oil, with manual refueling |
General.
| Mass of manipulative blocks | 4.8 kg |
|---|---|
| Power supply | 110/240 V V alternate current |
| Compatible microscopes | Leica, Olympus, Nikon, ZEISS (inverted) |
