Laboratory refrigerators and freezers of the BioBasic series
Economical bio-preservation: four sizes from 104 to 536 liters of useful volume
Product overview
- BioBasic
- Gram BioLine
- Denmark
- BioBasic
- 210 / 310 / 410 / 600
Economical bio-preservation: four sizes from 104 to 536 liters of useful volume
Refrigeration (RR) and Freezing (RF) performance with ATEX without extra charge
Gram BioLine BioBasic is an economical Danish line of professional laboratory refrigerators and freezers. One card covers four sizes: from a compact basement cabinet to a full-size model of 610 liters.
Forced air distribution maintains uniform temperature and eliminates cold walls in the chamber. BioBasic controller provides acoustic and visual temperature and door alarms, dry contact for remote alarms, maximum and minimum temperature control, keyboard locking and reading correction. The 210/310/410 refrigeration versions have solid and glass doors available; the internal and external ATEX Category 3 Zone 2 conformance is provided for the entire lineup.
The line includes models 210, 310, 410 and 600 with a total volume of 125, 218, 346 and 610 liters respectively. RR refrigeration works in the range +2 ... + 15 °C, freezer RF - - -25 ... -5 °C. Dimensions increase from 595 × 640 × 831 mm in the model 210 to 700 × 895 × 2125 mm in the model 600. Models 210/310/410 use R600a refrigerant and molded It's a polystyrene internal chamber, a 600-R290 model, and a stainless interior chamber, and it's an automatic smart defrosting that re-evaporates the meltwater, and you don't create any single card of the same type for the four volumes, and you select the configuration on the ruler page.
Key figures
ATEX
Cat.3 Zone 2 without surcharge
from 33.2 dB(A)
noise level
Applications
- Storage of reagents and calibrators
- Storage of samples and biosamples
- Microbiological environments and strains
- Storage of media and cell banks
Models and configurations
- RR210
- RR310
- RR410
- RR600
Product details

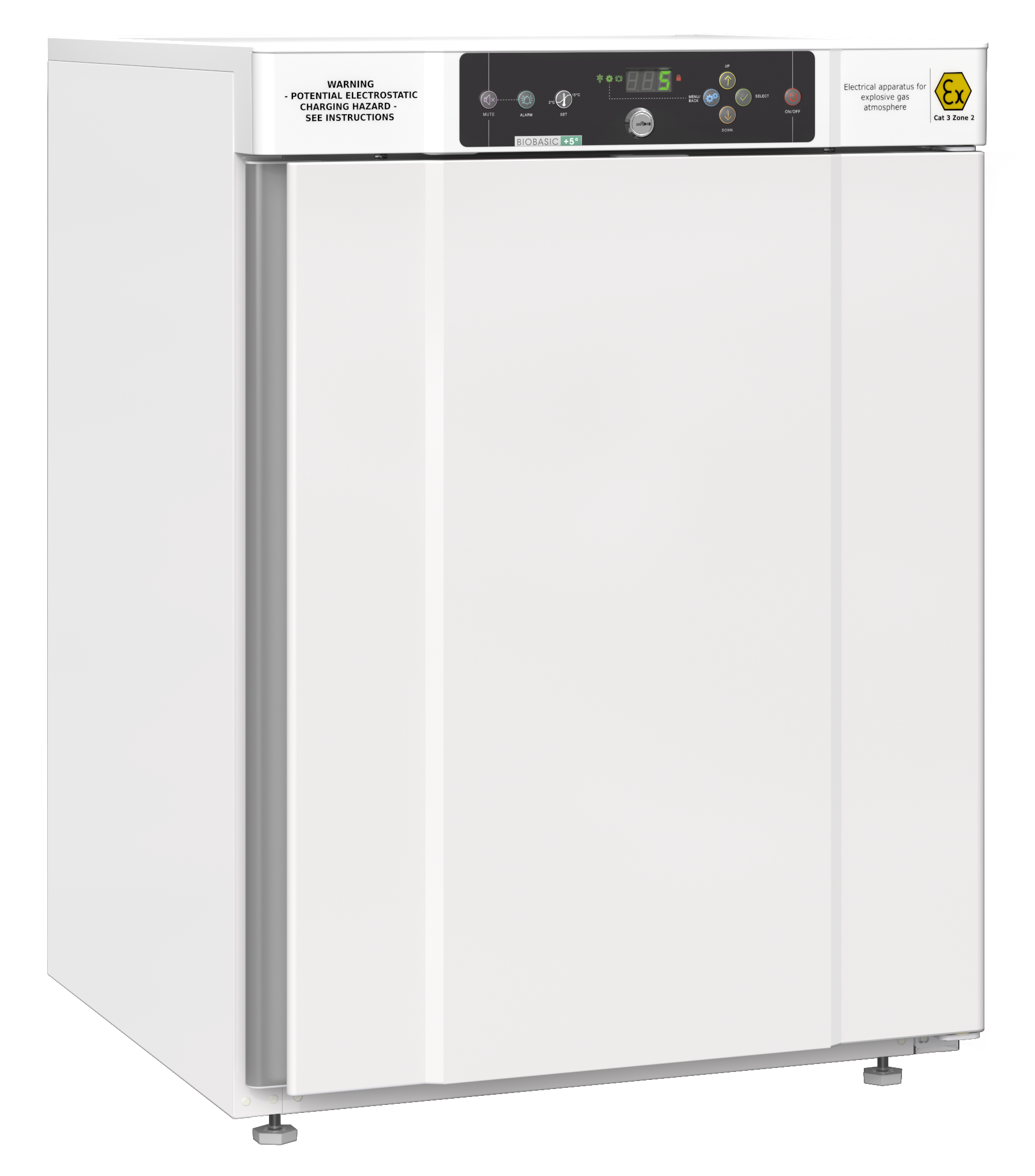

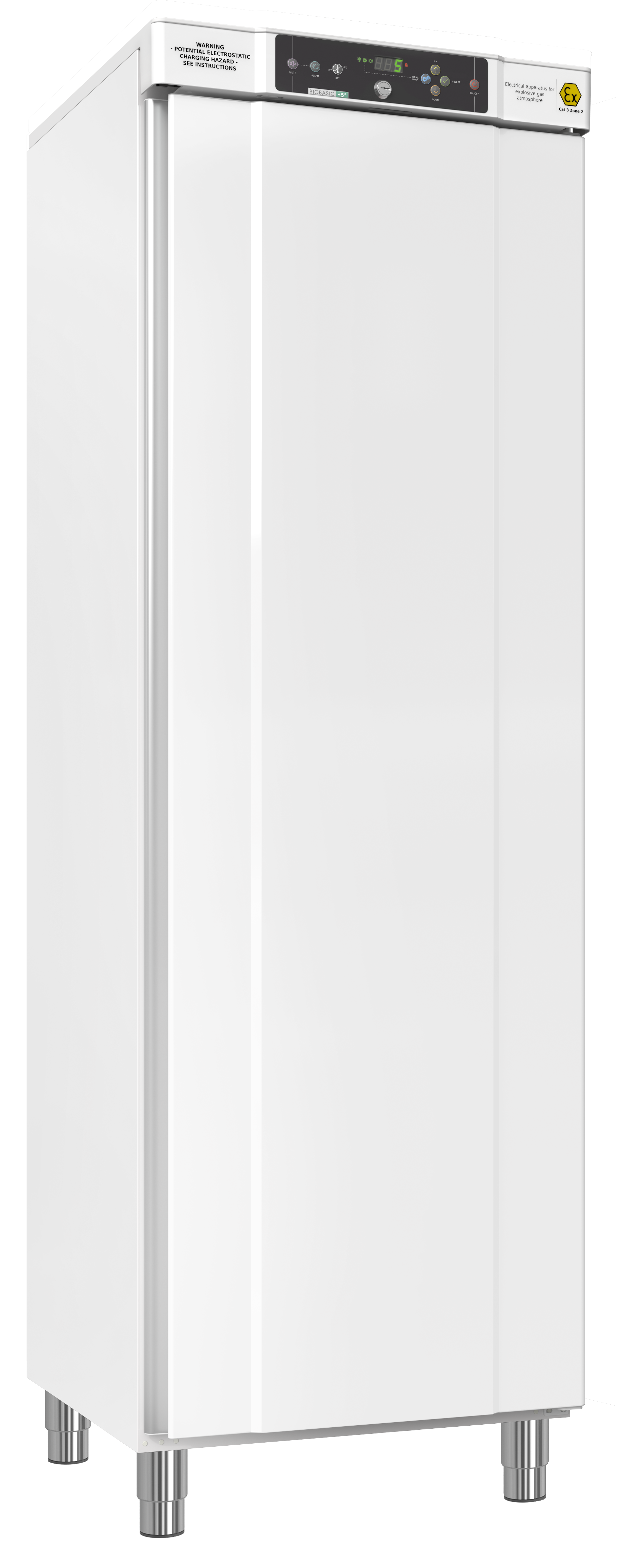

BioBasic 210/310/410/600
four sizes, refrigeration and freezing performance
BioBasic Control Panel
branded controller with acoustic / visual alarm
Economics
- Finn evaporator is placed in the upper part of the cabinet separately from the storage room - there are no cold walls in the chamber
- Compact construction for installation in cramped conditions without loss of functionality
- Full ATEX Category 3 Zone 2 compliance (inside and out) is available at no additional charge
Monitoring and alarm
- BioBasic Controller with Acoustic and Visual Temperature and Door Signaling
- Non-potential contact (NC/NO) for remote temperature alarm and power outage
- Indication of maximum and minimum recorded temperature, keyboard lock, function of reading correction
Design
- Models 210/310/410 - internal polystyrene chamber and refrigerant R600a; model 600 - stainless chamber and refrigerant R290
- Automatic intelligent defrosting with repeated evaporation of melt water
- The door lock with two keys is standard
Temperature and regimen
| Temperature range (RR/RF) | refrigerator +2 ... +15 °C; freezer -25 ... -5 °C (for all standard sizes of the line) |
|---|---|
| Permissible room temperature | solid door +10 ... +35 / +43 °C; glass door +10 ... +32 °C (by size) |
| Controller | BioBasic controller: acoustic/visual temperature and door alarms, non-potential contact, reading correction function |
Dimensions and volume
| Dimensions (W×D×H) | 595 x 640 x 831 mm 595 x 640 x 1220 mm 595 x 640 x 1876 mm 700 × 895 × 2125 mm |
|---|---|
| Total volume | 125 l l l. 218 l 346 l 610 l |
| Useful volume | 104 l 189 l l 312 l 536 l |
| Number of shelves (plastic-steel) | 3 4 6 4 |
Refrigerant and energy consumption (refrigeration)
| Refrigerant | R600a R600a R600a R290 |
|---|---|
| Energy consumption | 0.43 kWh/day 0.51 kWh/day 0.59 kWh/day 1.44 kWh/day |
| Noise level | 33.3 dB(A) 34.1 dB(A) 33.2 dB(A) 44.4 dB(A) |
| Ground | wheels/crops wheels/crops adjustable adjustable |
Design
| Materials of the inner chamber | polystyrene polystyrene polystyrene stainless-steel |
|---|---|
| Case material | white-coloured steel |
| Power supply | 230 V, 50 Hz |
| Port port | 1 1 1 2 |
| ATEX marking | II 3G Ex ec ic IIB T6 Gc II 3G Ex ec ic IIB T6 Gc II 3G Ex ec ic IIB T6 Gc II 3G Ex ec ic IIB T6 Gc |
Packages and options

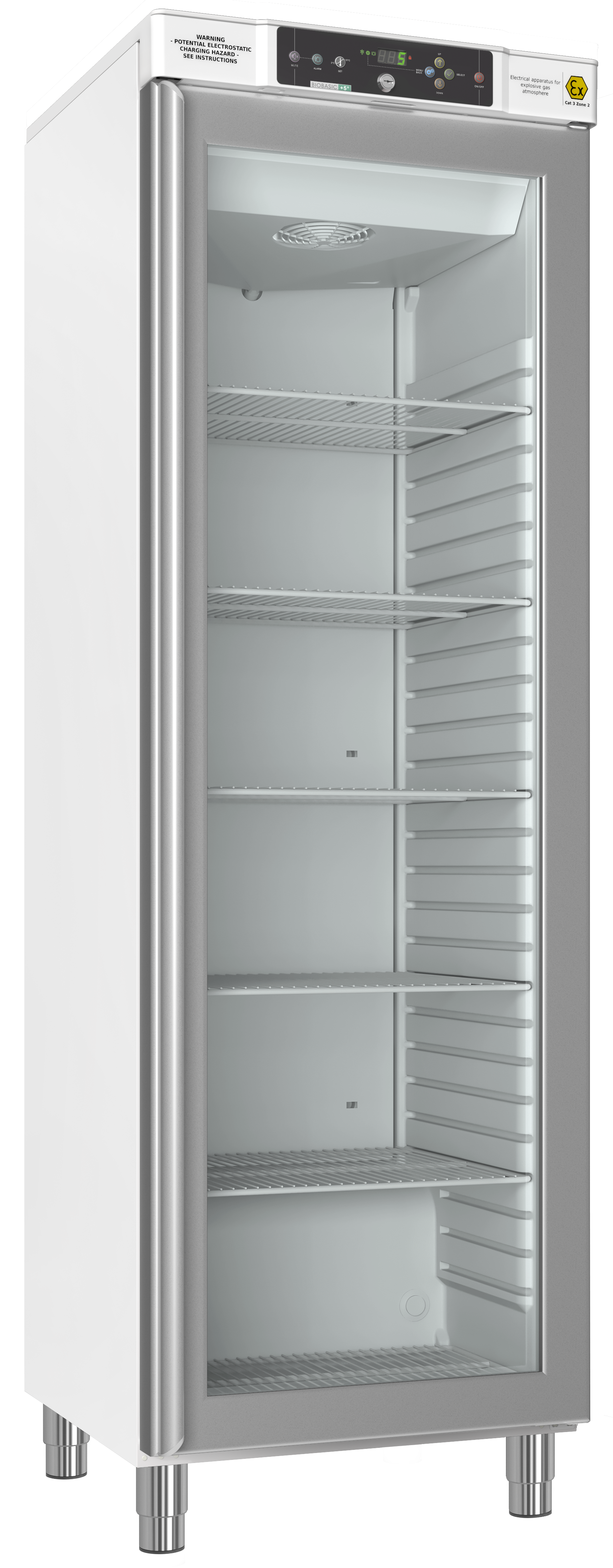

Glass door
Refrigeration option: visual control of contents without opening the door
ABS boxes
Whole-formed boxes of maximum rigidity with a smooth surface
Wire basket
Large basket in U-shaped guides for storing several items with easy access
Wall-mounting
Save space on the floor and make cleaning easier
Podium installation
Alternative to the standard base without additional payment
