TargetScreener HR Screening Solution
Targeted and non-targeted pollutant screening based on 3,000+ compounds – from sample to report in 5 steps
Product overview
- TargetScreener HR
- Bruker
- USA
- PesticideScreener at qTOF
- TargetScreener HR
Targeted and non-targeted pollutant screening based on 3,000+ compounds – from sample to report in 5 steps
High-resolution QTOF workflow with TASQ; TargetScreener 4D version adds CCS
A single HRMS-process for targeted and non-targeted screening of pollutants, toxicants and prohibited substances.
TargetScreener HR takes full-scan MS and bbCID data, maps it to the exact mass base, and generates a report in TASQ. The full set of signals remains available for retrospective search; new connections can be added to the database without reanalyzing the samples already measured.
The official database contains more than 3,000 records: monoisotope precursor masses, retention times, up to ten qualifier ions, bbCID fragments, adducts, isomers and CCS. The MRSQ/MRSQC score combines mass accuracy, retention time, isotope profile, diagnostic ions and, for 4D configuration, CCS.
Key figures
5 steps
before the TASQ report
294
pesticide in 5 minutes
CCS
4D
Applications
- Pesticide residues
- Forensic toxicology and NPS
- PFAS
- Dioxins, furans, PCBs
- Veterinary drugs
Models and configurations
- TargetScreener HR
- TargetScreener 4D
Product details
TargetScreener HR
Equipment, software and base in one solution
MRSQC assessment
match-indication
All ions, all the time.
- Full MS and bbCID scan without loss of sensitivity, resolution or mass accuracy
- Retrospective search of previously measured samples after adding new compounds
- Diagnostic ions exclude false positive results and distinguish between colluting isobars
Prepared methods
- Ready-made LC/GC-, MS- and software methods reduce implementation time
- The criteria are in line with the SANTE 11312/2021 guidelines.
- 294 pesticides in wheat in a 5-minute method
4D screening
- TargetScreener 4D adds TIMS separation and CCS values as an additional criterion
- Ready-made GC-APCI method for dioxins, furans and PCBs according to Regulation (EU) 2017/644
- Method for 350 pollutants
Database
| Volume. | over 3,000 records |
|---|---|
| Contents of the record | Monoisotope mass of precursor, retention time, up to 10 qualifier ions (bbCID and in-source fragments), adducts, isomers, CCS |
| Classes of compounds | Pesticides, Veterinary Drugs, Drugs and NPS, Pharmaceuticals, PFAS, Steroids, Toxins, Dioxins, Environmental Pollutants |
Criteria and processing
| Evaluation | MRSQ MRSQC (with CCS) |
|---|---|
| Mass Accuracy (SANTE) | ≤ 5 ppm (or ≤ 1 mDa below m/z 200) |
| Allowance of retention time | ± 0.1 min |
| Software | TASQ; MetaboScape - option |
| Conclusion | Reports, exports to LIMS |
Hardware part

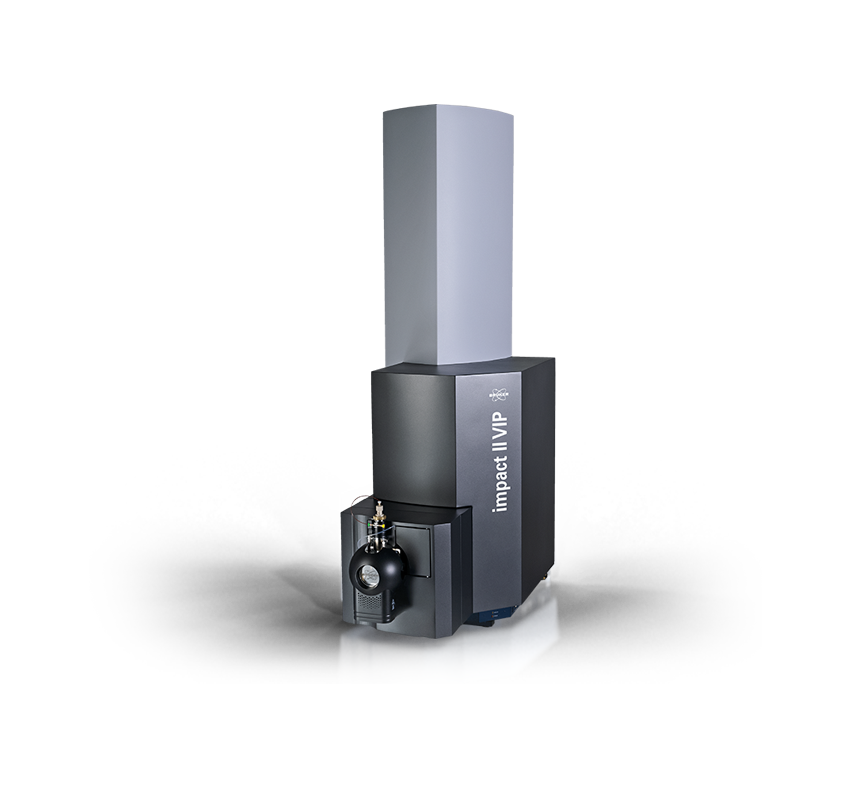

| Mass spectrometer | QTOF compact or impact II VIP timsTOF |
|---|---|
| Chromatography | UHPLC, GC |
| Ion Motility (TIMS) | — yes |
Sources of ionization
GC-APCI II
Gas chromatograph coupling through heated transfer line
Software
MetaboScape
Statistical analysis and identification of unknowns
