Micro Solutions / Life Science

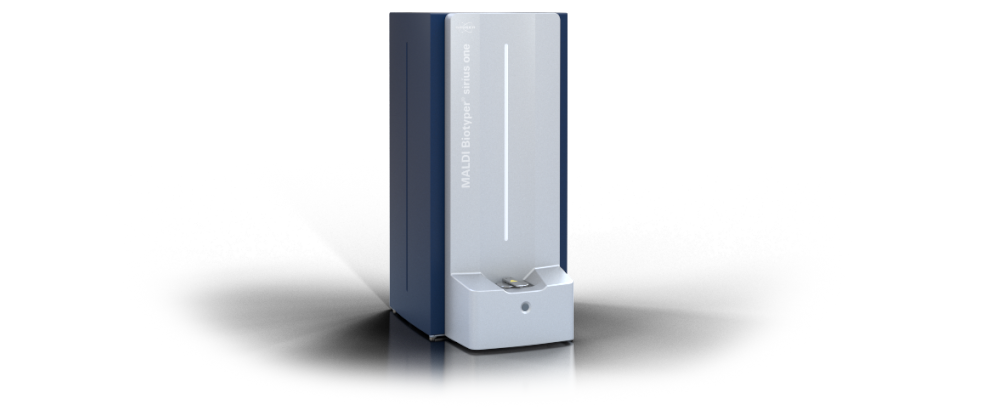

MALDI Biotyper Sirius One
Routine identification of microorganisms: up to 600 samples per hour in a compact enclosure
Product overview
- MALDI Biotyper sirius one
- Bruker
- Germany
- MALDI Biotyper
- MALDI Biotyper sirius one
Routine identification of microorganisms: up to 600 samples per hour in a compact enclosure
unipolar configuration (positive ions) for clinical microbiology
Compact MALDI-TOF platform for accelerated routine identification of microorganisms.
MALDI Biotyper sirius one automates the acquisition of a protein spectral profile and its comparison with the library. IDealTune reduces the amount of daily tuning, and MBT Compass organizes measurements and output of results.
The declared performance is up to 600 samples per hour, weight is 75 kg. Sirius one operates in positive ion mode; the configuration is designed for routine microbiological identification.
Key figures
75 kg
lightest
>4 600
library
CE-IVD
ivD
Applications
- Clinical microbiology
- Identification of bacteria and yeast
- Mycelial mushrooms and mycobacteria
- Identification from hemocultures
- Early detection of resistance
Models and configurations
- MALDI Biotyper sirius one
Product details
Compact desktop system
small-scale
Expendables IVD
Targets, HCCA matrix, BTS test standard
Speed
- The identification is displayed immediately after each spectrum is taken.
- Full target report (95 isolates and control) – about 5 minutes
- Rapid target change and priority start of urgent samples
For a routine lab.
- Unipolar solution in positive ion mode
- Small installation area and weight of 75 kg
- Minimum staff training due to step-by-step software scenarios
Stability of results
- IDealTune Auto-Configurement Without Separate Calibration Samples
- Built-in ion source cleanup at the click of a mouse
- Smartbeam laser with a life of 7 years or 500 million shots
Throughput
| Throughput | up to 600 samples/h |
|---|---|
| Full target report (95 isolates + 1 QC) | ~5 minutes |
| Sample preparation, manual time | ~20 s per isolate; 95 isolates less than 20 min |
| Direct identification from positive hemoculture | 15-20 minutes after the signal (Rapid Sepsityper Workflow) |
Mass spectrometer
| Method | MALDI-TOF mass spectrometry, desktop system |
|---|---|
| Ion regimen | positive |
| laser | Smartbeam, a resource of 7 years or 500 million shots |
| Setting up | Automatic IDealTune with IVD Bacterial Test Standard |
| Cleaning up the ion source | built-in, IR laser, without vacuum disturbance |
| Weight | 75 kg |
Library and software
| Software | MBT Compass HT IVD with MBT IVD Library |
|---|---|
| Library coverage | More than 4,600 species/groups of bacteria, yeasts and mycelial fungi |
| Targets | MBT Biotarget 96 IVD, 96 positions, barcode |
| Integration | LIS/LIS, Sensitivity Determination Systems (AST), Laboratory Automation Systems |
Expendables IVD
MBT Biotarget 96 IVD
Disposable targets for 96 positions with an individual barcode, a set of 20 pieces.
IVD HCCA Matrix, portioned
Positioned matrix HCCA: 10 tubes of 250 μl
IVD Bacterial Test Standard (BTS)
Standard for quality control and operation of IDealTune: 5 tubes of 50 μl
MSP adapter for MBT Biotarget 96
Adapter for installing disposable targets in the device
Extended task kits
MBT Sepsityper IVD Kit
Isolation of microorganisms from 50 positive hemocultures
MBT Mycobacteria IVD Kit
Safe inactivation and sample preparation of mycobacteria from liquid and dense media
MBT STAR-Carba IVD Kit / MBT STAR-Cepha IVD Kit
Phenotypic detection of carbapenemasic and cephalosporinasic activity
MBT Compass HT IVD Software Modules
MBT HT Sepsityper IVD Module
Identification directly from positive hemoculture
MBT HT Mycobacteria IVD Module
Identification of Mycobacterium spp.
MBT HT Filamentous Fungi IVD Module
Identification of mycelial fungi with a separate library
MBT HT Subtyping IVD Module
Differentiation of hard-to-detect species and resistance markers (blaKPC, cfiA)
MBT HT STAR-BL IVD Module
Support for MBT STAR-Carba and STAR-Cepha assays
Optimization and automation
MBT Shuttle
Non-slip holder of the target, matrix and tubes BTS during sample preparation
MBT FAST Shuttle IVD
Standardized accelerated drying of matrix and liquid reagents
MBT Pilot System
Illumination of the next free position of the target when applying samples
