850 μm
PET resolution (β-CUBE)
Micro Solutions / Life Science

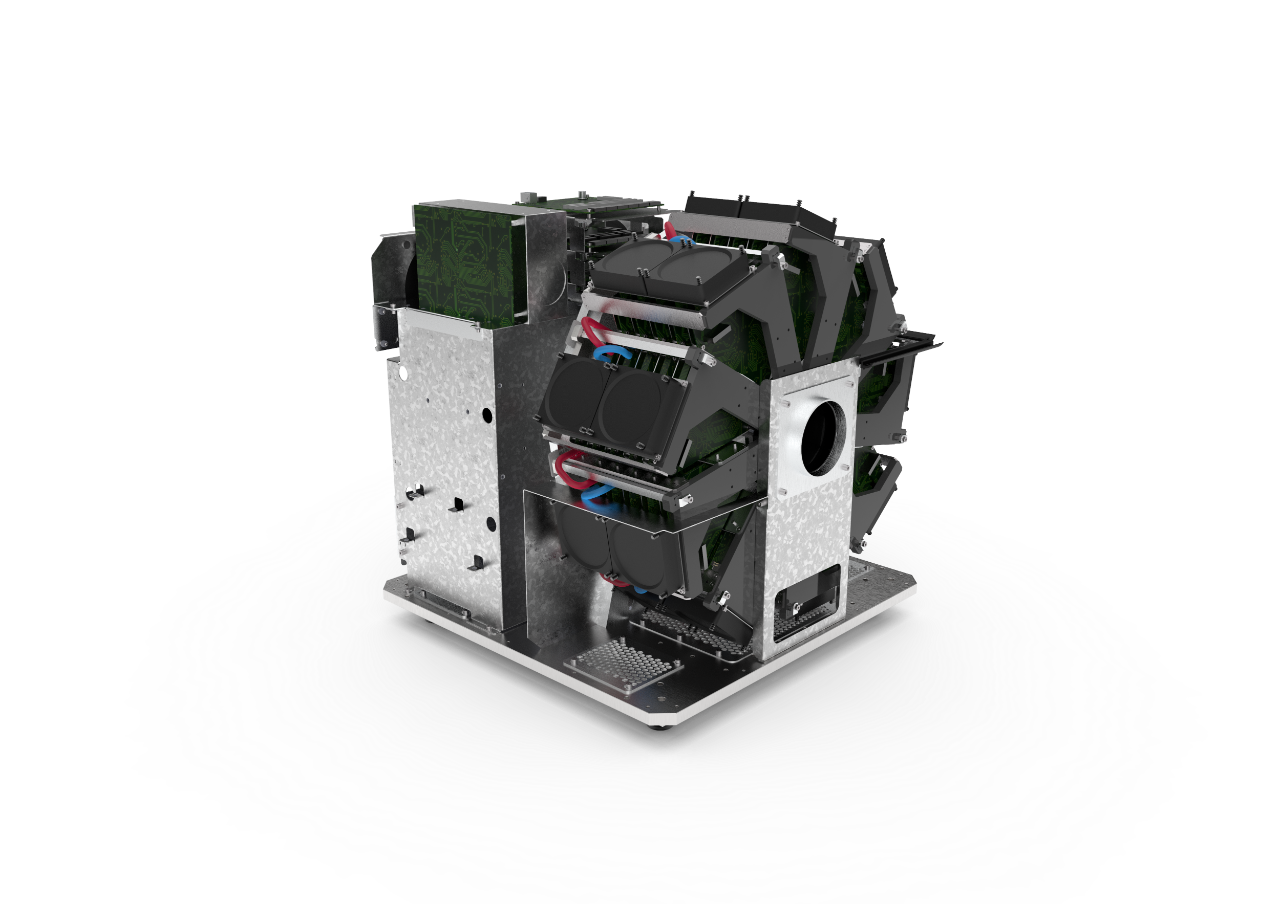

Modular PET/SPECT/CT system of the CUBES series
Desktop platform for preclinical imaging: from one modality to a complete PET/SPECT/CT complex
Product overview
- Modular desktop PET, SPECT and CT
- Bruker
- USA
- PET / SPECT / CT
- Modular desktop PET, SPECT and CT
Desktop platform for preclinical imaging: from one modality to a complete PET/SPECT/CT complex
β-CUBE, γ-CUBE and X-CUBE modules with a single CUBEFLOW software management
CUBES Modular Series for Compact Preclinical PET, SPECT and CT Visualization on the Laboratory Desk.
β-CUBE, γ-CUBE and X-CUBE allow you to start with a separate modality and combine modules into a multimodal process. The systems are designed to study mice and rats, support automated positioning, and generate combined anatomical and molecular data.
The line includes individual PET, SPECT and CT modules with wireless control and CUBEFLOW software process. The exact spatial resolution, field of view, sensitivity and set of collimators depend on the selected module and configuration; they are not unified in the group card.
Key figures
50 μm
CT resolution (X-CUBE)
up to 4 mice
simultaneous
SiPM
digital detectors
Applications
- Molecular imaging
- Pharmacokinetics
- Oncology
- Neurology
- Cardiology
Models and configurations
- β-CUBE (PET)
- γ-CUBE (SPECT)
- X-CUBE (CT)
Product details
Module β-CUBE/γ-CUBE
table-board
X-CUBE module
X-ray CT imaging
Modularity
- Three independent modules – β-CUBE (PET), γ-CUBE (SPECT) and X-CUBE (CT) – can be purchased and installed separately or combined into a multimodal complex.
- CUBEFLOW’s shared platform manages all modules from a single workplace or microplate: study planning, data collection, reconstruction and monitoring of an animal.
- Compact tabletop formogabarite (about 54×56 cm in plan) saves the area of the laboratory
Detection technologies
- β-CUBE uses digital SiPM/LYSO PET detectors with full DOI resolution in depth interaction
- γ-CUBE is built on SiPM/NaI(Tl) detectors with patented ultra-high resolution collimators and support for multiisotope research.
- X-CUBE provides low-dose CT imaging with cardio and respiratory gateway
Throughput
- β-CUBE: static and dynamic shooting of up to 4 mice at a time, support cardiostating
- γ-CUBE: static and dynamic shooting of up to 3 mice at a time
- X-CUBE: Low-dose shooting of up to 4 mice at a time
β-CUBE - PET
| Spatial resolution | 850 μm |
|---|---|
| Sensitivity | >12% |
| Field of view (transaxial/axial) | 72 mm / >250 mm |
| Detector | SiPM/LYSO, digital, with DOI resolution |
| Mass/dimension | ~90 kg / 54×56×54 cm |
γ-CUBE - SPECT
| Spatial resolution | 500 μm |
|---|---|
| Sensitivity | >1,2% |
| Field of view (transaxial/axial) | up to 60 mm / > 250 mm |
| Energy range | up to 511 keV, energy resolution <10% |
| Detector | SiPM/NaI(Tl), ultra-lofthole collimators |
| Mass/dimension | ~130 kg / 54×56×54 cm |
X-CUBE - CT
| Spatial resolution | 50 μm |
|---|---|
| Field of view (transaxial/axial) | 65 mm / >250 mm |
| Gentry diameter | 86 mm |
| Source energy range | 20-50 keV |
| Mass/dimension | ~120 kg / 54×56×71 cm |
Software
| Management platform | CUBEFLOW: Planning, collection, reconstruction, animal monitoring, automatic quality control |
|---|---|
| Interface. | single workspace or microplate for all modules |
