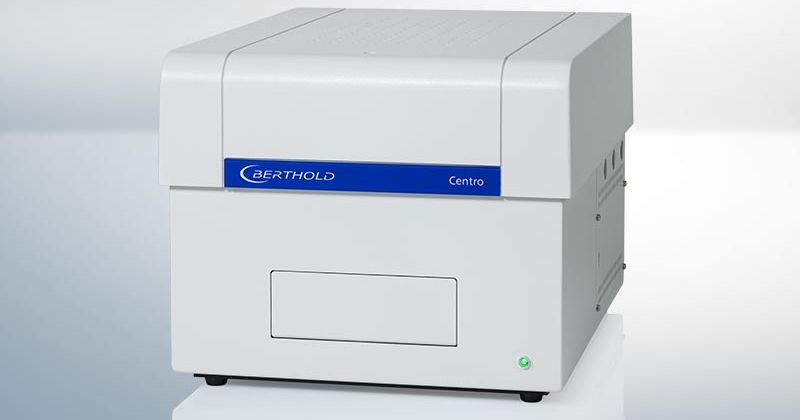

Microplate luminometer Centro LB 960
Universal phosphate for flash and glow analysis with sensitivity less than 2 zeptomol/well
Product overview
- Centro LB 960
- Berthold
- Germany
- Centro
- Centro LB 960
Universal phosphate for flash and glow analysis with sensitivity less than 2 zeptomol/well
Previous generation Centro; for new projects, the manufacturer recommends the Centro LB 963
The Centro LB 960 is a previous-generation luminometer for sensitive flash and glow analysis; for new projects, the manufacturer recommends the current model Centro LB 963.
A low-noise photoelectron multiplier in single photon counting mode provides low background and wide dynamic range for reporter gene analysis, fluorescent immunoassays and cell tests. Up to three JET injectors deliver the reagent at variable speed, including a gentle mode for living cells, and kinetic measurements. It is operated at a resolution of 0.05 seconds for up to 7 days, and the data is processed in Mikrowin software.
Spectral luminescence range 340-630 nm; sensitivity less than 5 amol ATP and less than 2 zeptomol of firefly luciferase per well; dynamic range of more than 6 orders of magnitude; intermoor illumination 1×10−6. Microplates 96 and 384 wells. Sandwich heating system provides thermostating up to 42 ° C. Dimensions of the device with injectors - 390×450×350 mm.
Key figures
<2 dmol
firefly luciferase/well
>6 orders of magnitude
range
10⁻⁶
moonlight
Applications
- Reporter gene analysis
- Luminescent immunoassays (LIA, ILMA)
- Cellular and biochemical analyses
- Screening on living cells (e.g. GPCR)
Models and configurations
- Centro LB 960
Sensitivity
- Low-noise PVC in single photon counting mode, spectral range 340-630 nm
- Sensitivity less than 5 amol ATP and less than 2 zeptomol of firefly luciferase per well
- Intermoon illumination 1×10−6, dynamic range of more than 6 orders of magnitude
Measurements
- Up to 3 injectors of JET technology with variable feed rate, including a gentle mode for living cells
- Kinetic measurements with a resolution of 0.05 seconds and a duration of up to 7 days
- Sandwich heating system for thermostating to 42 °C
Operation
- Compact housing designed for a minimum of space on the table
- Data management and analysis in Mikrowin software with export to Excel/ASCII
- Service – through test microplates, QC services and Cleanit Daily solution
Detector
| Detector | FEU, single photon count, 340-630 nm |
|---|---|
| Sensitivity | <5 amol ATP/well; <2 dmol firefly luciferase/well |
| Dynamic Range / Cross-talk | >6 orders; 1×10−6 |
Injectors and kinetics
| Injectors | up to 3, JET technology, variable feed rate |
|---|---|
| Kinetics | resolution from 0.05 s, duration up to 7 days |
| Temperature control | sandwich heater, up to 42°C |
General parameters
| Microplate formats | 96 and 384 holes |
|---|---|
| Dimensions (SH×G×B, with injectors) | 390×450×350 mm |
| Software | Mikrowin |
Validation and maintenance
Test microplates for quality control of luminescence
Checking the stability of the luminescent channel of the device
Cleanit Daily
Solution for cleaning injectors
