Airwell air sampling sampler

Portable air sampling probe of 1.6 kg with a flow rate of 100 or 200 l/min

Product overview

AIRWEL
Alliance Bio Expertise
France
AIRWEL
AIRWEL

Portable air sampling probe of 1.6 kg with a flow rate of 100 or 200 l/min

Bluetooth data transfer and IP65 protection

Compact portable air sampler for microbiological monitoring of clean rooms, laboratories and production areas. AIRWEL provides standardized selection for petri dishes at a consumption of 100 or 200 l / min and weighs only 1.6 kg.

AIRWEL directs calibrated airflow to 90-mm petri dishes or 55-mm contact plates to detect air microbiota. Continuous and fragmented cycles are available, stainless steel heads, autoclavable polycarbonate or disposable sterile grilles. Built-in Bluetooth transmits operator ID, plates and sample volume. In software; AIRWEL Plus additionally supports selection point programming, cascading passwords and wireless charging.

Calibrated flow of 100 or 200 l / min; autonomy up to a total volume of 30 000 liters. Compatible with 90 and 55 mm dishes, continuous or fragmented selection. IP65 degree of protection, antibacterial coating of the case. Dimensions 150 x 130 x 330 mm, weight 1.6 kg; power charger 120-230 V, 50-60 Hz, 120 W. Production: France, EU.

Key figures

100/200

l-min

1.6 kg

mass

IP65

hull protection

30,000 l

autonomy

Applications

Microbiological air monitoring
Monitoring of cleanrooms
Quality control of compressed gases (with option)
GMP/GLP Selection Documentation

Models and configurations

AIRWEL
AIRWEL+

Product details

AIRWEL

portable air sampler

Application

petri-cooking

Standardized selection

Calibrated consumption of 100 or 200 l/min on 90 mm petri dishes or 55 mm contact plates
Continuous or fragmented selection cycles
Heads made of stainless steel, autoclavable polycarbonate or disposable sterile

Ease of operation

Weight of only 1.6 kg, there is an optional tripod
IP65 degree of protection, antibacterial coating of the body
Wireless charging with autonomy up to 30 000 liters of selection

Traceability

Built-in Bluetooth transmits operator ID, dishes and sample volume to software
Remote start of selection from the microplate through the application
AIRWEL+ additionally supports cascading passwords, induction base and rigid transport case

Sampling

Airflow	100 l/min 100/200 l/min
Autonomy (volume)	30,000 l 30,000 l
Cup format	90 and 55 mm 90 and 55 mm
Selection regimes	continuous continuous
Head types	stainless steel, autoclavable polycarbonate, disposable sterile stainless steel, autoclavable polycarbonate, disposable sterile

Design

Protection	IP65 IP65
Coverage of the hull	antibacterial antibacterial
Transport case	lungy hard-headed
Cascade password	— Yes
Induction base	— Yes
Dimensions	150 x 130 x 330 mm 150 x 130 x 330 mm
Weight	1.6 kg 1.6 kg

power supply and communication

Bluetooth module	Yes Yes
Charger	18 V/15 W, 120–230 V, 50–60 Hz 18 V/15 W, 120–230 V, 50–60 Hz
Country of production	France, EU France, EU

Airwell delivery kit

18 V/15 W charger (BCLO2016)

Power and wireless charging

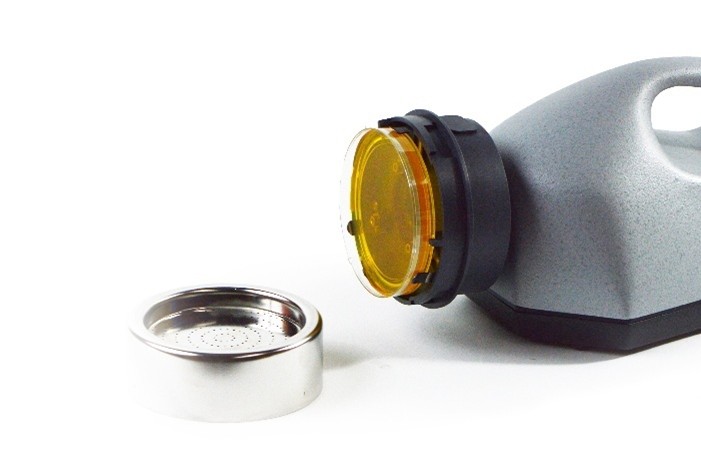

Stainless steel grille and cover (BCLO2025)

Head for sampling per dish

Penguin Holder (BCLO2067)

Vertical fixation of the instrument

Light Transport Case (BCLO2014)

Carrying and storage of the device

Delivery package AIRWEL+

Induction base

Wireless charging with built-in self-check stand

Grille 90 or 55 mm (BCLO3001/BCLO3002)

Dish-format heads

The Hard Transport Case (BCLO2013)

Enhanced protection during transport

Options

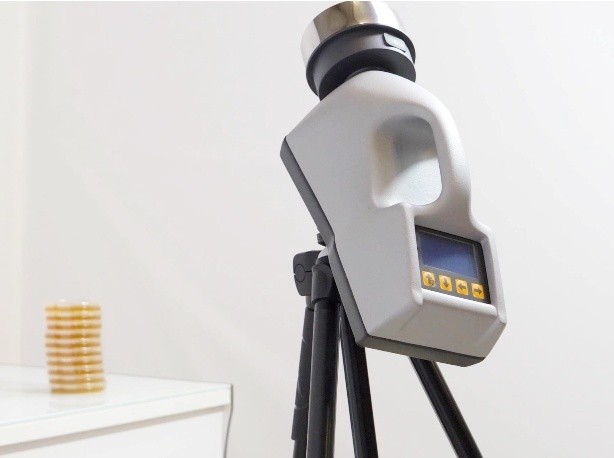

A tripod

Installation of the device without holding hands

Stainless steel gas station

Control of microbial purity of compressed gas

Microplate with the Air sampler application

Remote start of sampling and collection of sample data
